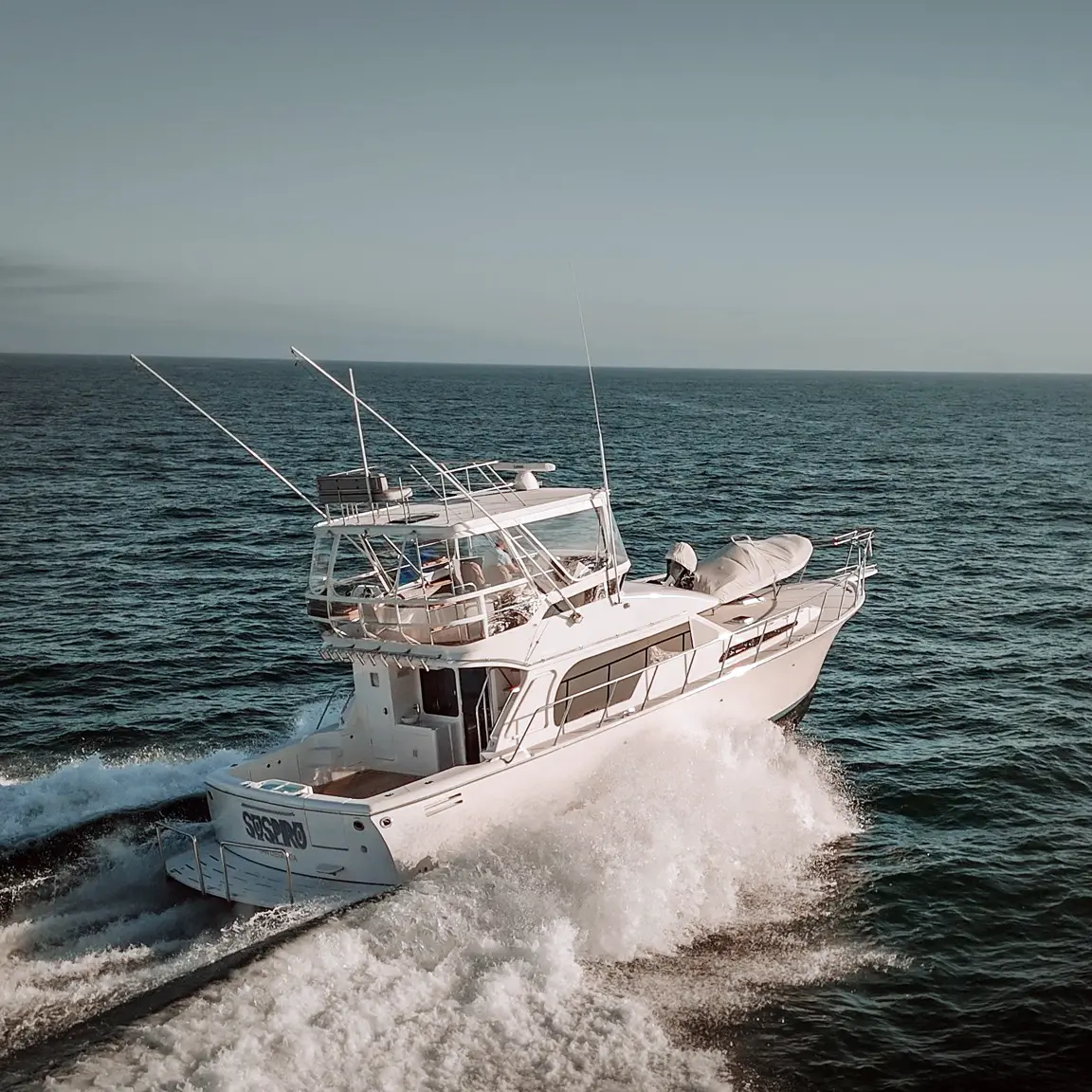

Generation III Mikelson 45 Sportfisher

Based on the highly successful Generation II M43 Sportfisher, the new Gen III Mikelson 45 boasts many of the same highly refined design features and so much more. Built for both durability and performance and constructed using BTI and Hexcell fiberglass materials, the new Gen III M45 features a solid fiberglass hull below the waterline and a Corecell foam core above, ensuring a boat that can handle the rigors of long-range cruising and sportfishing while keeping all onboard extremely comfortable.

The exterior boasts beautiful polished white gel coat and frameless windows, complemented by stainless steel deck hardware and a non-skid molded fiberglass foredeck. Powered by twin Cummins QSB 6.7L 550HP turbo diesel engines, the Mikelson 45 offers impressive speed and efficiency. Its advanced mechanical systems include a 9KW generator, comprehensive sound insulation in the engine room for quieter operation, and a 27,000 BTU air conditioning system for maximized comfort.

With its massive flybridge and creature comforts that are second to none, this new addition to the Mikelson line-up is designed to deliver a superior boating experience, making it the perfect choice for those who seek a blend of comfort and performance while on the water.

Technical Specifications

BASICS

LOA (approx.)	46′ 06″
BEAM (approx.)	15′ 10″
DRAFT (approx.)	3′ 03″
HOLDING TANK	60 gal
FUEL (approx.)	600 gal
WATER (approx.)	200 gal
WEIGHT	34,600 lbs

CONSTRUCTION

BTI and Hexcell F/G Materials
Solid Fiberglass Hull below water line Corecell foam core above water line Exterior Polished white gel coat color Hydraulic steering system
Flybridge lexan venturi, S/S supports and frame S/S tube radar arch with electronics wire runs All thru-hulls installed in solid F/G
Marine bronze seawater thru-hulls Protective bonding system
Nonskid molded ﬁberglass foredeck and sidedecks Stainless steel deck hardware
Frameless windows
Hull bottom epoxy barrier paint Hull bottom antifouling paint
Anti-vibration reinforced athwart ship engine room webbing stringers

PLUMBING

12VDC Smart-sensor water pump
4 each Rule high capacity automatic/manual bilge pumps Tank Tender pneumatic tank level gauge system
30 gal. 120 VAC hot water heater 60 gal. F/G holding tank
Deck ﬁtting for waste pump out
Jabsco Quietﬂush freshwater ﬂush ceramic bowl toilets Sealand Tankwatch holding tank gauge
Sealand odor reducing sanitation hoses Par Jabsco macerator 12 VDC pump Customer select sinks & faucets

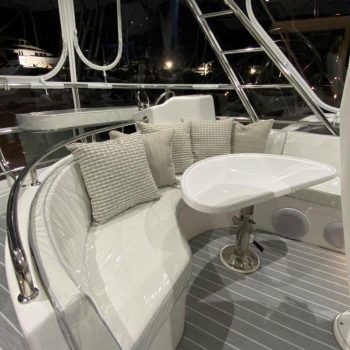

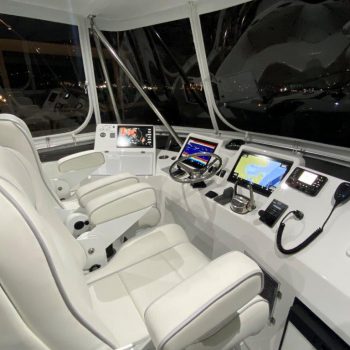

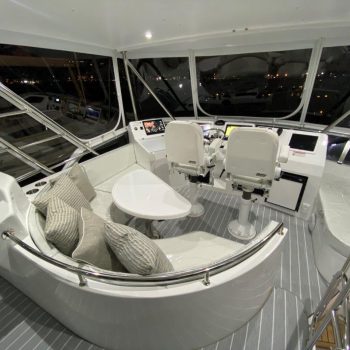

FLYBRIDGE

S/S radar arch
Forward helm with wrap-around electronics & control console
Molded settee with fixed table (converts to berth)
Recessed footwell for helmseat
Plexiglass wrap-around venturi with S/S tube frame
Storage under settee seats
4” vinyl cushions on seat bottoms, angled back
Murray Bros rotocast helmseats with cushions
4 1/2” flush mounted Ritchie compass
Perko 12 VDC courtesy lights
S/S ladder with handrails enclosing above F/B deck
Vertical console locker doors with storage
Angled electronics display consoles
Indoor/outdoor carpeting on F/B deck
Schmitt custom polished stainless steering wheels
AC/DC refrigeration

MECHANICAL

Twin Cummins QSB 6.7L 550HP common rail turbo diesel engines with ZF 2801V transmissions including AirSep air ﬁlters, digital Vessel View monitoring system, Glendinning ﬂybridge electronic shift and throttle controls, Hynautic ﬂybridge hydraulic steering, NIBRAL 4 blade propellers on 2.25″ Aqualoy S/S shafts, S/S struts, rudders, and Bennett S/S trim tabs with ﬂybridge controls. Underwater exhaust system including idle bypasses.
9KW generator in soundshield Groco Main engine seacocks
Engine room sound insulation for quieter running
Engine set gauges for RPM/TEMP/VOLTS/OIL PRES/HOURS Automatic halon ﬁre extinguishing system in engine room Racor primary fuel ﬁlters (main engines and generator) Seawater intake bronze thru-hulls
Seawater intake bronze sea strainers
Fuel in two non-integral epoxy-treated ﬁberglass tanks Water in one epoxy-treated ﬁberglass tank
27,000 BTU air conditioning w/reverse cycle heat
Engine room sound insulation and 12V engine room lights
Engine hatch lift assists

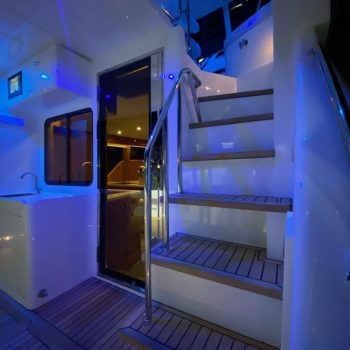

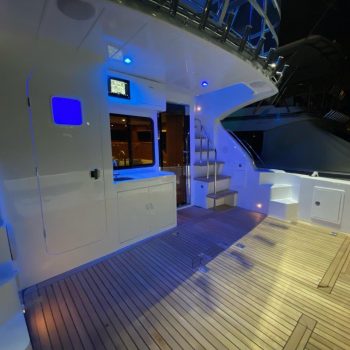

COCKPIT

Built-in transom bait tank with lights, window
Molded transom door hinged outboard
Built-in tackle center
Fiberglass non-skid cockpit deck, ﬁberglass caprails Port/starboard cockpit side storage lockers
Molded ﬁberglass swimstep
Quarter rail Rubrail aft corner hullside at waterline LED 12 VDC cockpit courtesy lights
Hot/cold cockpit shower Shurﬂo seawater wash down
LED Cockpit overhead 12V lights
2 each molded drop-in ﬁberglass ﬁsh boxes Exterior stereo speakers
Stainless steel custom ﬂush mounted rod holders (6)

OPTIONS

Hardtop with Makralon enclosure
Genset upgrades to 12kw
Increase fuel capacity
Outriggers
Fighting chair
Rocket launchers
Electronics
Watermaker
Davit and chocks
Air conditioning & heat upgrades
Freezer box in lazarette/cockpit
Marlin tower
Many other options are available upon request

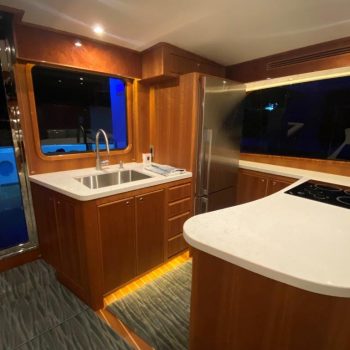

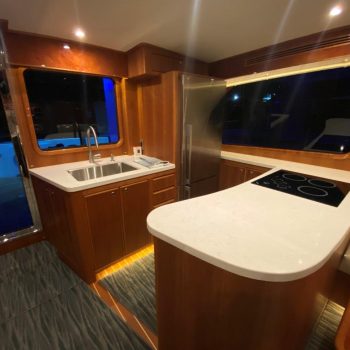

GALLEY

U-shaped galley
Galley Fisher & Paykel 13 cu ft refer/freezer
Galley 120 VAC ceran stovetop
Galley convection/microwave/broiler oven
Customer select galley sink & faucet
Under salon storage with walk-in access
Galley built-in trash bin
Custom counter tops

ELECTRICAL

AC/DC electrical panel with system breakers and volt/amp meters in salon 2000w inverter system for both 120VAC use and 12VDC charging
Battery Combiners for automatic charging of house and starting banks F/B 12VDC subpanel for ﬂybridge electronics
Cockpit 120VAC shore power inlet 4 each 8D batteries in F/G boxes
Battery vapor proof selector switch for house- bank/starting-bank/off 120 VAC duplex outlets throughout
LED 12VDC overhead lights
12VDC 150 watt cockpit ﬂood lights
Heavy duty 105 amp engine driven alternators Insulated, color coded and numbered wiring throughout (4) Rule automatic bilge pumps
Marinco 50’ 120V 50amp powercord
Ship’s alarm status panel for hi-water and ﬁre

DECK

Buell air horns
Hide-away swim ladder under the swim step
Muir Horizontal 12V windlass under ﬂush deck hatch Bruce type 44lb anchor w/275’ 5/16” hi-test marked chain One-color boot stripe
Non-skid decks throughout (sidedeck, foredeck, cockpit, ﬂybridge) S/S 1.25” dia. foredeck rails extending aft to start of cockpit
S/S handrails on port & starboard F/B aft sides
Six S/S mooring cleats (cockpit port/stbd corner hawse) (3) Bomar opening tinted aluminum deck hatches Anchor washdown faucet
Stainless steel side deckﬁlls for fuel

SAFETY EQUIPMENT

First aid kit
Life jackets (one per berth)
USCG ﬁre extinguishers
USCG ﬂare kit
Mooring lines 5/8” dia. various length
Taylor fenders (3 -10” colored)

INTERIORS

Master island queen-size plus berth with large drawers under Guest large berth with large drawers under
Fabric covered 6” foam mattresses with foam toppers
2 each master hanging lockers
Full-length mirror in master stateroom
Forward berth headboard mirrors with chain locker access Master opening deck hatch with hinged screen
5 each S/S oval opening portholes
Guest opening deck hatch with hinged screen Guest large hanging locker

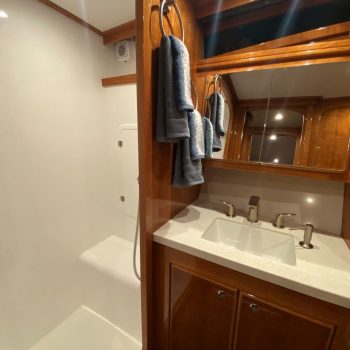

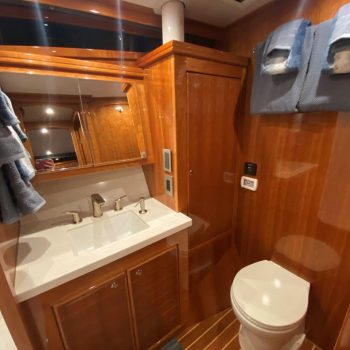

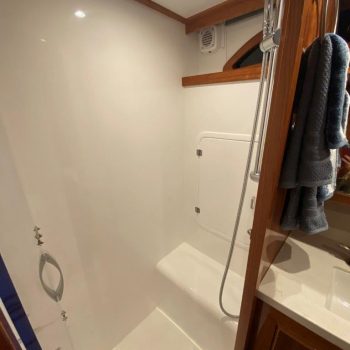

Head with large separate stall shower
Head opening deck hatch with hinged screen
Select wood entrance doors to staterooms w/Lockwood latches

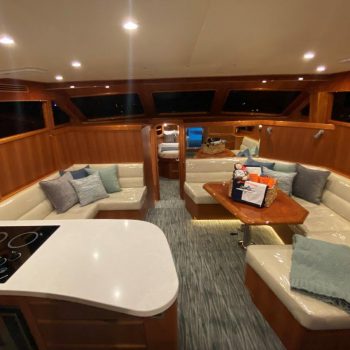

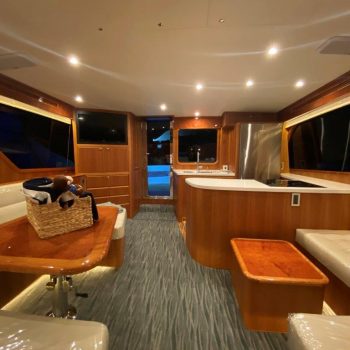

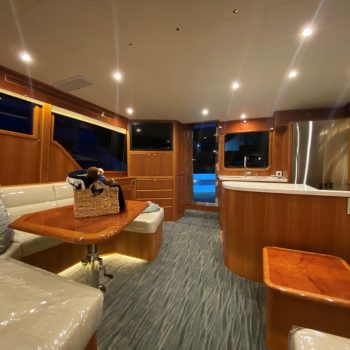

SALON

Salon Windows 360 degrees
Dinette & settee in salon
Salon door with handle lock
Dinette table
Salon color 32” LED TV

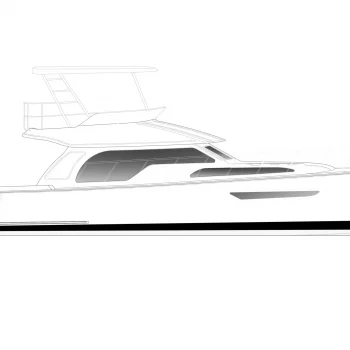

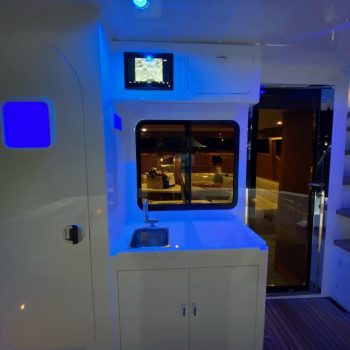

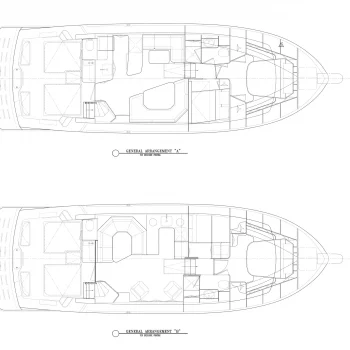

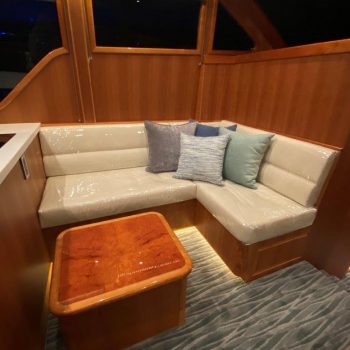

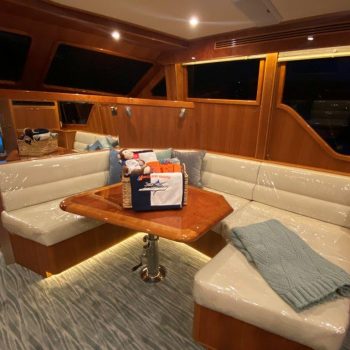

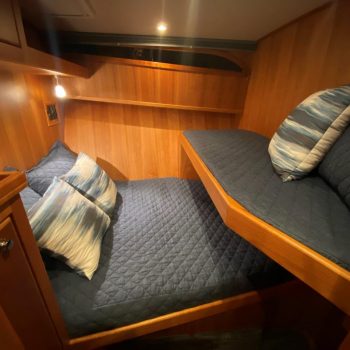

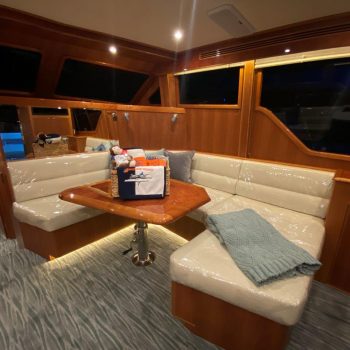

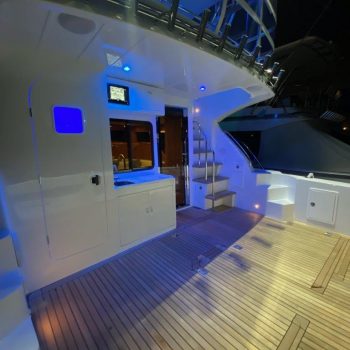

M45 Layout & Factory Completion Photos

Technical Specifications

Basics

Weight	34,600 lb
Beam	15’ 10”
Draft	3’ 06”
Length	LOA: 48′ 08″ (includes swimstep & bow pulpit) LOD: 44′ 08″
Fuel	Fuel: 600 gal
Water	Water: 200 gal (optional 200 gal auxiliary tank available)
Engines	Twin Standard Cummins 6.7L QSB-550 “Common Rail” Turbo Diesels.

Construction

BTI and Hexcell F/G Materials
Solid Fiberglass Hull below water line
Corecell foam core above water line
Exterior Polished off-white or white gel coat color
Hynautic MS-1175-25-1 hydraulic steering system
Flybridge lexan venturi, S/S supports and frame
S/S tube radar arch with electronics wire runs
All thru-hulls installed in solid F/G
Marine bronze seawater thru-hulls
Protective bonding system
Linear polyurethane painted accent stripes
Nonskid molded fiberglass foredeck and sidedecks
Stainless steel deck hardware
Frameless windows
Hull bottom epoxy barrier paint
Hull bottom antifouling paint
Anti-vibration reinforced athwart ship engine room webbing stringer

Electrical

AC/DC electrical panel with system breakers and volt/amp meters in salon
2000w inverter system for both 120VAC use and 12VDC charging
Battery Combiners for automatic charging of house and starting banks
F/B 12VDC subpanel for flybridge electronics
Cockpit 120VAC shore power inlet
4 each 8D batteries in F/G boxes
Battery vapor proof selector switch for house- bank/starting-bank/off
120 VAC duplex outlets throughout
Cantalupi 12VDC overhead lights
Par Jabsco 12VDC 150 watt cockpit flood lights
Heavy duty 105 amp engine driven alternators
Insulated, color coded and numbered wiring throughout
(4) Rule automatic bilge pumps
Marinco 50’ 120V 50amp powercord
Marinco phone-cable inlet
Ship’s alarm status panel for hi-water and fire

Mechanical

Twin Cummins QSB 6.7L 550HP “Common Rail” Diesels
ZF 280IV Transmissions
Glendinning Electronic Engine Controls
2.25″ Aqualoy S/S Shafts
Underwater Exhaust w/Idle Bypass
9KW Northern Lights generator in soundshield
Engine room sound insulation for quieter running
Automatic halon fire extinguishing system in engine room
Racor primary fuel filters (main engines and generator)
Fuel in two non-integral epoxy-treated fiberglass tanks
Water in one epoxy-treated fiberglass tank
Engine temperature/oil pressure alarm system
CruiseAir 16,000 BTU air conditioning wlreverse cycle heat
12V engine room lights
Engine hatch lift assists

Plumbing

Flojet fresh water pump and expansion tank system for higher capacity
4 each Rule high capacity automatic/manual bilge pumps
Tank Tender pneumatic tank level gauge system
15 gal. 120 VAC hot water heater
60 gal. F/G holding tank
Deck fitting for waste pump out
Jabsco Quietflush freshwater flush toilets
Sealand Tankwatch holding tank gauge and Sealand sanitation hoses
Par Jabsco macerator 12 VDC pump
Customer select sinks & faucets

Galley

U-shaped galley
T80 8.5 cu ft Tundra refer/freezer
120 VAC Seaward 2243 2-burner ceran stovetop
Convection/microwave/broiler oven
Customer select galley double bowl sink & faucet
Under salon storage with walk-in access
Built-in trash bin Surellcounter tops
Kindred S/S sink

Interior

Cherrywood gloss or satin interiors
Sony DVD/CD surround sound salon stereo with TV interface
Interior custom fitted bed covering in master and guest
Vetus push-pull locker knobs throughout interior
Upgraded larger more attractive searails in gloss varnish
Salon overhead cleats under the vinyl for rod rack mounting
Hidden airconditioning and other control panels within the locker
Anodized aluminum/glass, entryway locking door
Deluxe vinyl headliner
Select wood hand-rubbed varnished paneled bulkheads
Overhead light fixtures 12V
Duplex 120V ground fault electrical outlets throughout
Telephone standard outlet
Decor selection throughout (carpeting, countertops, headliner, etc.)
Hanging lockers with lights
Select carpet in salon and staterooms

Staterooms

Master island queen-size plus berth with large drawers under
Guest large berth with large drawers under
Fabric covered 6” foam mattresse
2 each master hanging lockers
Full-length mirror in master stateroom
Forward berth headboard mirrors with chain locker access
Master opening deck hatch with hinged screen
5 each S/S oval opening portholes
Guest opening deck hatch with hinged screen
Guest large hanging locker
Head with large separate stall shower
Head opening deck hatch with hinged screen
Telephone outlet in master stateroom
Select wood entrance doors to staterooms w/Lockwood latches

Salon

Salon Windows 360 degrees (side opening)
Dinette & settee in salon
Sliding salon door with handle lock
Dinette table with folding leaf
Salon color 27” TV
Overhead hidden rod locker

Cockpit

Built-in transom double bait tank with lights, windows & removable divider panel
Molded transom door hinged outboard
Built-in tackle center
Fiberglass non-skid cockpit deck, fiberglass caprails
Port/starboard cockpit side storage lockers
Molded fiberglass swimstep
Quarter rail Rubrail aft corner hullside at waterline
2 each Perko 12 VDC cockpit courtesy lights
Hot/cold cockpit shower
Shurflo seawater wash down
2 Cockpit overhead 12V lights
2 each molded drop-in fiberglass fish boxes
Exterior stereo speakers
Stainless steel ladder to flybridge with teak steps
Engraved custom flush mounted rod holders (6)
Overhead hidden rod locker

Flybridge

S/S radar arch
Forward helm with wrap-around electronics & control console
Molded settee with fixed table (converts to berth)
Recessed footwell for helmseat
Plexiglass wrap-around venturi with S/S tube frame
Storage under settee seats
4” vinyl cushions on seat bottoms, angled back
Murray Bros rotocast helmseats with cushions
4 1/2” flush mounted Ritchie compass
Perko 12 VDC courtesy lights
S/S ladder with handrails enclosing above F/B deck
Vertical console locker doors with storage
Angled electronics display consoles
Indoor/outdoor carpeting on F/B deck
Schmitt custom polished stainless steering wheels
AC/DC refrigeration

Deck

Grover air horns
Hide-away swim ladder under the swim step
Muir Horizontal 12V 1000H windlass under flush deck hatch
Bruce type 44lb anchor w/275’ 5/16” hi-test marked chain
Two-color F/B accent stripes and one-color boot stripe
Non-skid decks throughout (sidedeck, foredeck, cockpit, flybridge)
S/S 1.25” dia. foredeck rails extending aft to start of cockpit
S/S handrails on port & starboard F/B aft sides
Six S/S mooring cleats (cockpit port/stbd corner hawse)
(3) Bomar opening tinted aluminum deck hatches
Anchor washdown faucet
Stainless steel side deckfills for fuel

Safety

First aid kit
Fog bell 8” chrome
Life jackets (one per berth)
USCG fire extinguishers USCG flare kit
Mooring lines 5/8” dia. various length
Taylor fenders (3 -10” colored)

Optional Features

Pod Drives
Glendinning Pro-Pilot Joy-Stick Maneuvering System
Twin Volvos
Twin Cats
Hardtop with enclosure
Genset upgrades to 12kw
Cockpit Day Head w/Shower
Cockpit to Flybridge Staircase (in lieu of ladder)
Increase fuel capacity
Outriggers
Fighting chair
Rocket launchers
Electronics
Watermaker
Davit and chocks
Custom interior decor
Air conditioning & heat upgrades
Freezer box in lazarette/cockpit
Marlin tower
Many other options are available upon request

Technical Drawing

Contact Us

Phone: (619) 222-5007

Email: info@mikelsonyachts.com

Mikelson Yachts
Design by Tom Fexas

Book a Guided Tour

We provide both in-person and video-call tours led by knowledgeable Mikelson team members. Get all your questions answered as we tour the yacht of your choice together.

Why Buy Direct?

Mikelson Specialists

We are the experts when it comes to Mikelson yachts. Our brokers are well-versed in all aspects of these vessels and can provide answers to any questions you may have.

Customer Retention

The fact that 80% of our new yacht sales are to repeat customers who own a Mikelson Yacht is a testament to the versatility and superior build quality of our products.

Purchase Wholesale

Cut out the middleman and save on broker fees by dealing directly with the manufacturer. Build a personal relationship and have more control over the buying process.

Generation III Mikelson 45 Sportfisher
