Mikelson 57

Luxury Sportfisher

The Mikelson 57 Luxury Sportfisher is a custom-built marvel, designed by the renowned Tom Fexas. With a spacious salon featuring 360-degree windows and a luxurious 3-stateroom layout including a mid-ship master stateroom, the Mikelson 57 offers unparalleled comfort for all onboard. The yacht’s under-salon utility room is spacious and the flybridge features both forward and aft tournament stations, accessible via a molded staircase from the cockpit.

Equipped with a stand-up engine room and a cockpit day head with shower, this yacht also boasts a generous 1,200-gallon fuel capacity. With standard 715hp QSM-11 Cummins engines or the option of 800hp MAN “Common Rail” diesels, the Mikelson 57 is a powerhouse, offering a top-of-the-line boating experience. The generous stand-up engine room provides easy access to all systems, and the largest flying bridge in its class makes the Mikelson 57 a must-see.

Gallery

Technical Specifications

Basics

Weight	60,000 lbs
Beam	17′ 11″
Draft	4′ 05″
Length	LOA: 61′ 00″ (includes swimstep & bow pulpit) LOD: 57′ 03″
Fuel	Fuel: 1200 gal
Water	Water: 250 gal
Engines	715hp QSM-11 Cummins (850hp & 1,000hp options available)

Construction

BTI and Hexcell F/G Materials
Solid Fiberglass Hull below water line
Corecell foam core above water line
Exterior Polished off-white or white gel coat color
Hynautic MS-1175-25-1 hydraulic steering system
Flybridge lexan venturi, S/S supports and frame
S/S tube radar arch with electronics wire runs
All thru-hulls installed in solid F/G
Marine bronze seawater thru-hulls
Protective bonding system
Linear polyurethane painted accent stripes
Nonskid molded fiberglass foredeck and sidedecks
Stainless steel deck hardware
Frameless windows
Hull bottom epoxy barrier paint
Hull bottom antifouling paint
Anti-vibration reinforced athwart ship engine room webbing stringer

Electrical

AC/DC electrical panel with system breakers and volt/amp meters in salon
2000w inverter system for both 120VAC use and 12VDC charging
Battery Combiners for automatic charging of house and starting banks
F/B 12VDC subpanel for flybridge electronics
Cockpit 120VAC shore power inlet
4 each 8D batteries in F/G boxes
Battery vapor proof selector switch for house- bank/starting-bank/off
120 VAC duplex outlets throughout
Cantalupi 12VDC overhead lights
Par Jabsco 12VDC 150 watt cockpit flood lights
Heavy duty 105 amp engine driven alternators
Insulated, color coded and numbered wiring throughout
(4) Rule automatic bilge pumps
Marinco 50’ 120V 50amp powercord
Marinco phone-cable inlet
Ship’s alarm status panel for hi-water and fire

Mechanical

Twin Cummins QSB 6.7L 550HP “Common Rail” Diesels
ZF 280IV Transmissions
Glendinning Electronic Engine Controls
2.25″ Aqualoy S/S Shafts
Underwater Exhaust w/Idle Bypass
9KW Northern Lights generator in soundshield

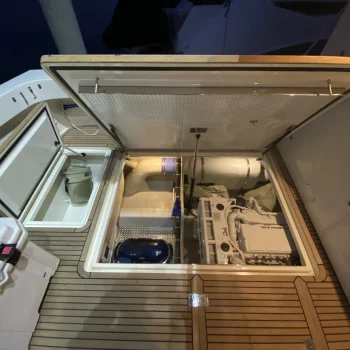

Engine room sound insulation for quieter running
Automatic halon fire extinguishing system in engine room
Racor primary fuel filters (main engines and generator)
Fuel in two non-integral epoxy-treated fiberglass tanks
Water in one epoxy-treated fiberglass tank
Engine temperature/oil pressure alarm system
CruiseAir 16,000 BTU air conditioning wlreverse cycle heat
12V engine room lights
Engine hatch lift assists

Plumbing

Flojet fresh water pump and expansion tank system for higher capacity
4 each Rule high capacity automatic/manual bilge pumps
Tank Tender pneumatic tank level gauge system
15 gal. 120 VAC hot water heater
60 gal. F/G holding tank
Deck fitting for waste pump out
Jabsco Quietflush freshwater flush toilets
Sealand Tankwatch holding tank gauge and Sealand sanitation hoses
Par Jabsco macerator 12 VDC pump
Customer select sinks & faucets

Galley

U-shaped galley
Galley T80 8.5 cu ft Tundra refer/freezer
Galley 120 VAC Seaward 2243 2-burner ceran stovetop
Galley. convection/microwave/broiler oven
Customer select galley double bowl sink & faucet

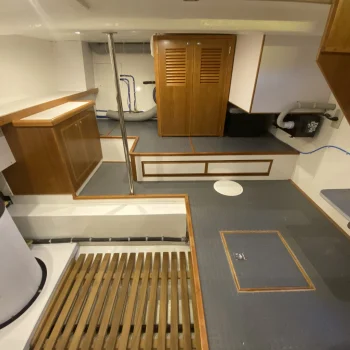

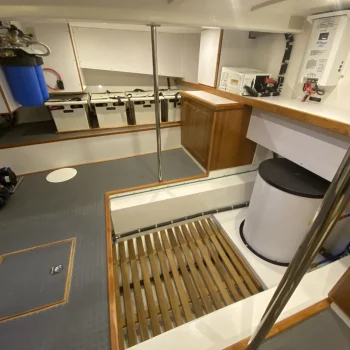

Under salon storage with walk-in access
Galley built-in trash bin Surellcounter tops
Kindred
S/S sink

Interior

Cherrywood gloss or satin interiors
Sony DVD/CD surround sound salon stereo with TV interface
Interior custom fitted bed covering in master and guest
Vetus push-pull locker knobs throughout interior
Upgraded larger more attractive searails in gloss varnish
Salon overhead cleats under the vinyl for rod rack mounting
Hidden airconditioning and other control panels within the locker
Anodized aluminum/glass, entryway locking door
Deluxe vinyl headliner
Select wood hand-rubbed varnished paneled bulkheads
Overhead light fixtures 12V
Duplex 120V ground fault electrical outlets throughout
Telephone standard outlet
Decor selection throughout (carpeting, countertops, headliner, etc.)
Hanging lockers with lights
Select carpet in salon and staterooms

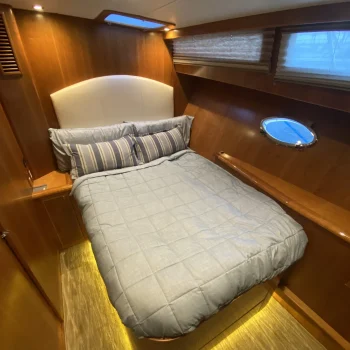

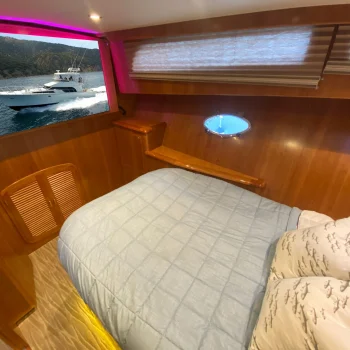

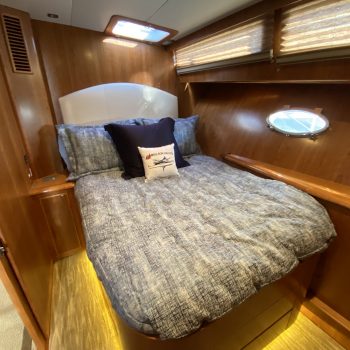

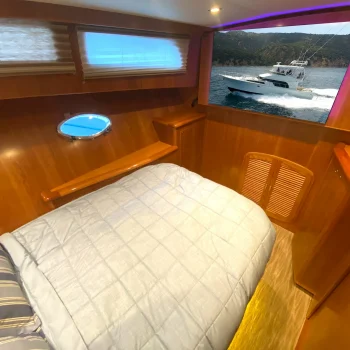

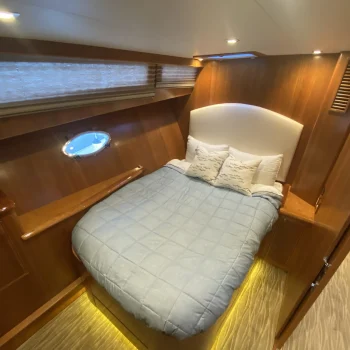

Stateroom

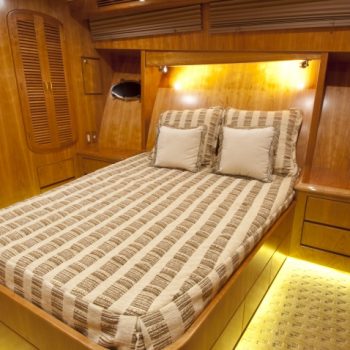

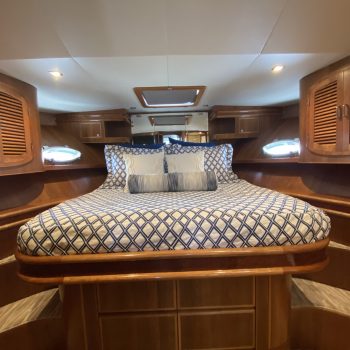

Master island queen-size plus berth with large drawers under

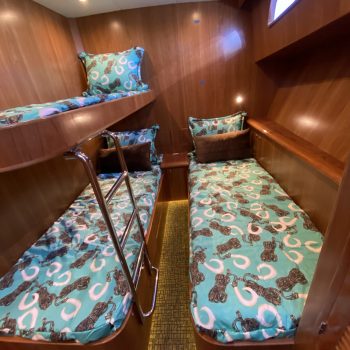

Guest large berth with large drawers under
Fabric covered 6” foam mattresse
2 each master hanging lockers
Full-length mirror in master stateroom
Forward berth headboard mirrors with chain locker access
Master opening deck hatch with hinged screen
5 each S/S oval opening portholes
Guest opening deck hatch with hinged screen
Guest large hanging locker

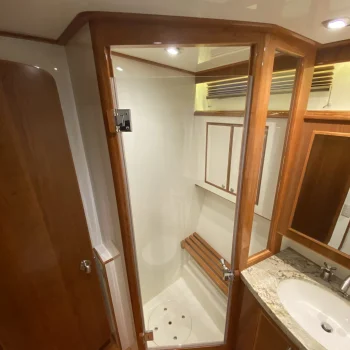

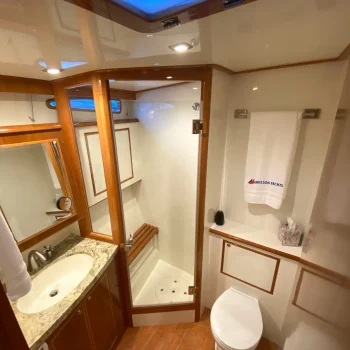

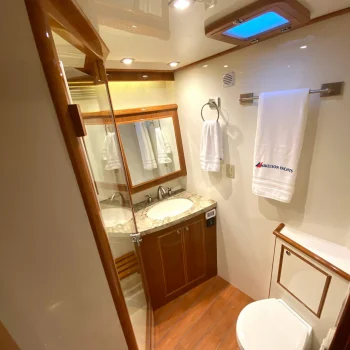

Head with large separate stall shower
Head opening deck hatch with hinged screen
Telephone outlet in master stateroom
Select wood entrance doors to staterooms w/Lockwood latches

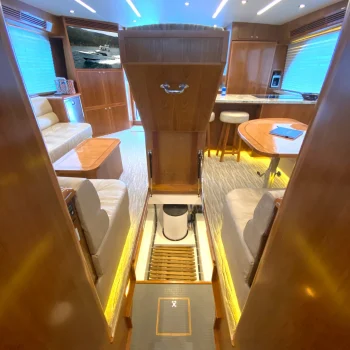

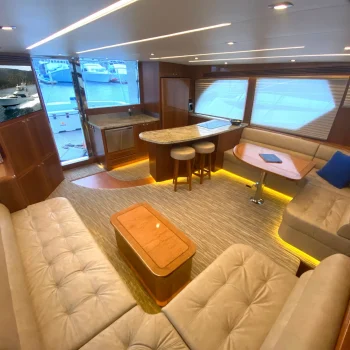

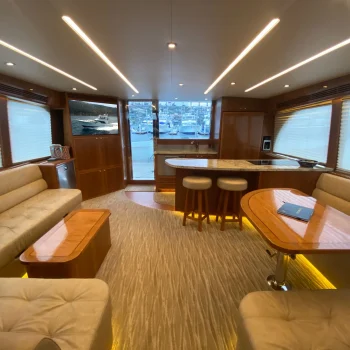

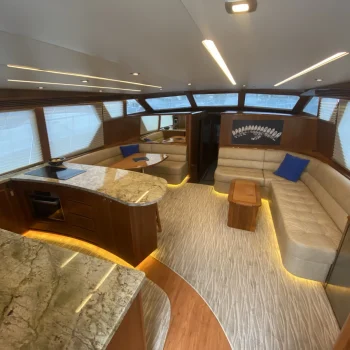

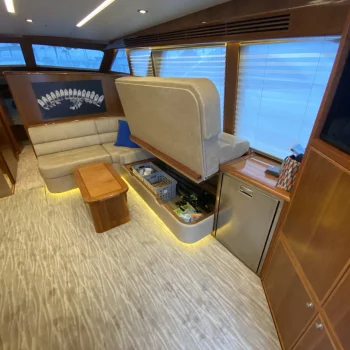

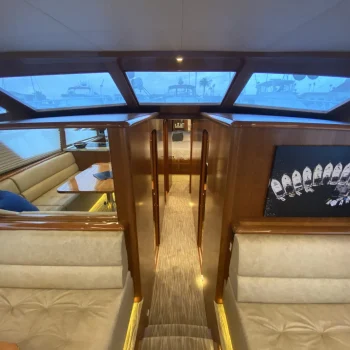

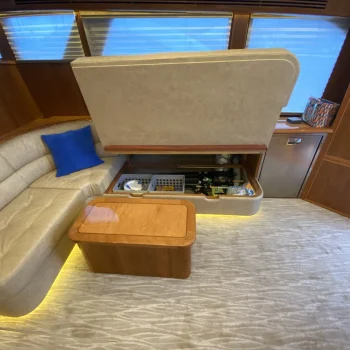

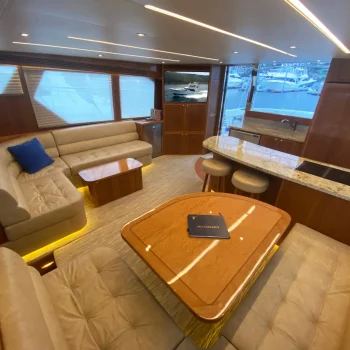

Salon

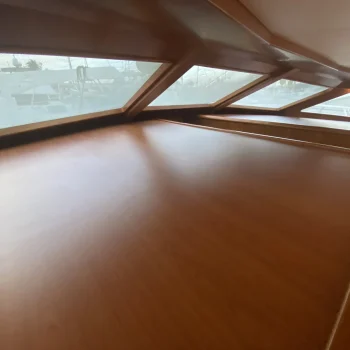

Salon Windows 360 degrees (side opening)
Dinette & settee in salon
Sliding salon door with handle lock
Dinette table with folding leaf
Salon color 27” TV
Overhead hidden rod locker

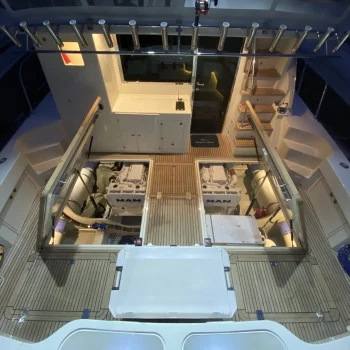

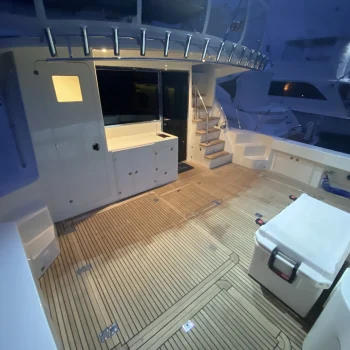

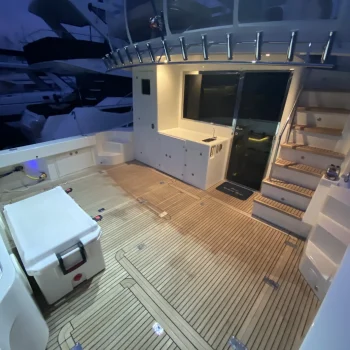

Cockpit

Built-in transom double bait tank with lights, windows & removable divider panel
Molded transom door hinged outboard
Built-in tackle center
Fiberglass non-skid cockpit deck, fiberglass caprails
Port/starboard cockpit side storage lockers
Molded fiberglass swimstep
Quarter rail Rubrail aft corner hullside at waterline
2 each Perko 12 VDC cockpit courtesy lights
Hot/cold cockpit shower
Shurflo seawater wash down
2 Cockpit overhead 12V lights
2 each molded drop-in fiberglass fish boxes
Exterior stereo speakers
Stainless steel ladder to flybridge with teak steps
Engraved custom flush mounted rod holders (6)
Overhead hidden rod locke

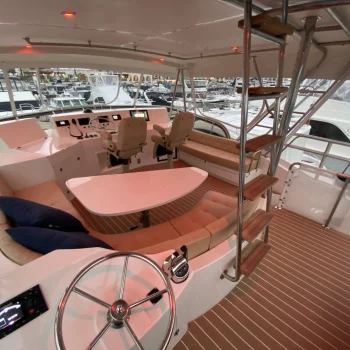

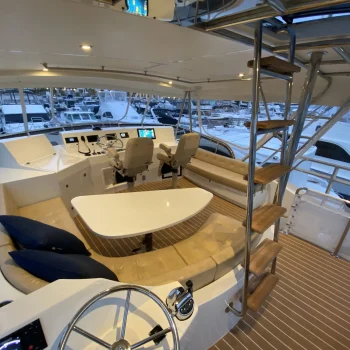

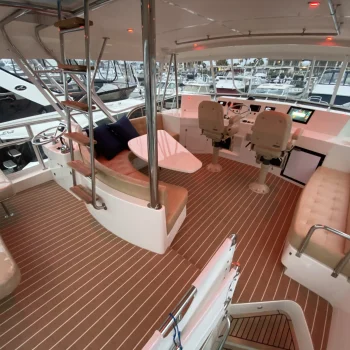

Flybridge

S/S radar arch

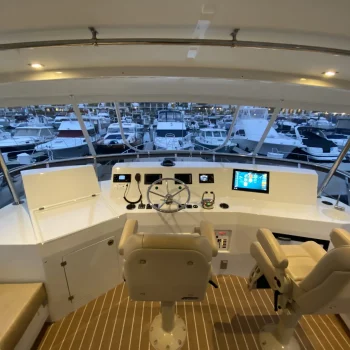

Forward helm with wrap-around electronics & control console
Molded settee with fixed table (converts to berth)
Recessed footwell for helmseat
Plexiglass wrap-around venturi with S/S tube frame
Storage under settee seats
4” vinyl cushions on seat bottoms, angled back
Murray Bros rotocast helmseats with cushions
4 1/2” flush mounted Ritchie compass
Perko 12 VDC courtesy lights
S/S ladder with handrails enclosing above F/B deck
Vertical console locker doors with storage
Angled electronics display consoles
Indoor/outdoor carpeting on F/B deck
Schmitt custom polished stainless steering wheels
AC/DC refrigeraton

Deck

Grover air horns
Hide-away swim ladder under the swim step
Muir Horizontal 12V 1000H windlass under flush deck hatch
Bruce type 44lb anchor w/275’ 5/16” hi-test marked chain
Two-color F/B accent stripes and one-color boot stripe
Non-skid decks throughout (sidedeck, foredeck, cockpit, flybridge)
S/S 1.25” dia. foredeck rails extending aft to start of cockpit
S/S handrails on port & starboard F/B aft sides
Six S/S mooring cleats (cockpit port/stbd corner hawse)
(3) Bomar opening tinted aluminum deck hatches
Anchor washdown faucet
Stainless steel side deckfills for fuel

Safety

First aid kit
Fog bell 8” chrome
Life jackets (one per berth)
USCG fire extinguishers USCG flare kit
Mooring lines 5/8” dia. various length
Taylor fenders (3 -10” colored)

Optional Features

Pod Drives
Glendinning Pro-Pilot Joy-Stick Maneuvering System
Twin Volvos
Twin Cats
Hardtop with enclosure
Genset upgrades to 12kw
Cockpit Day Head w/Shower
Cockpit to Flybridge Staircase (in lieu of ladder)
Increase fuel capacity
Outriggers
Fighting chair
Rocket launchers
Electronics
Watermaker
Davit and chocks
Custom interior decor
Air conditioning & heat upgrades
Freezer box in lazarette/cockpit
Marlin tower
Many other options are available upon request
